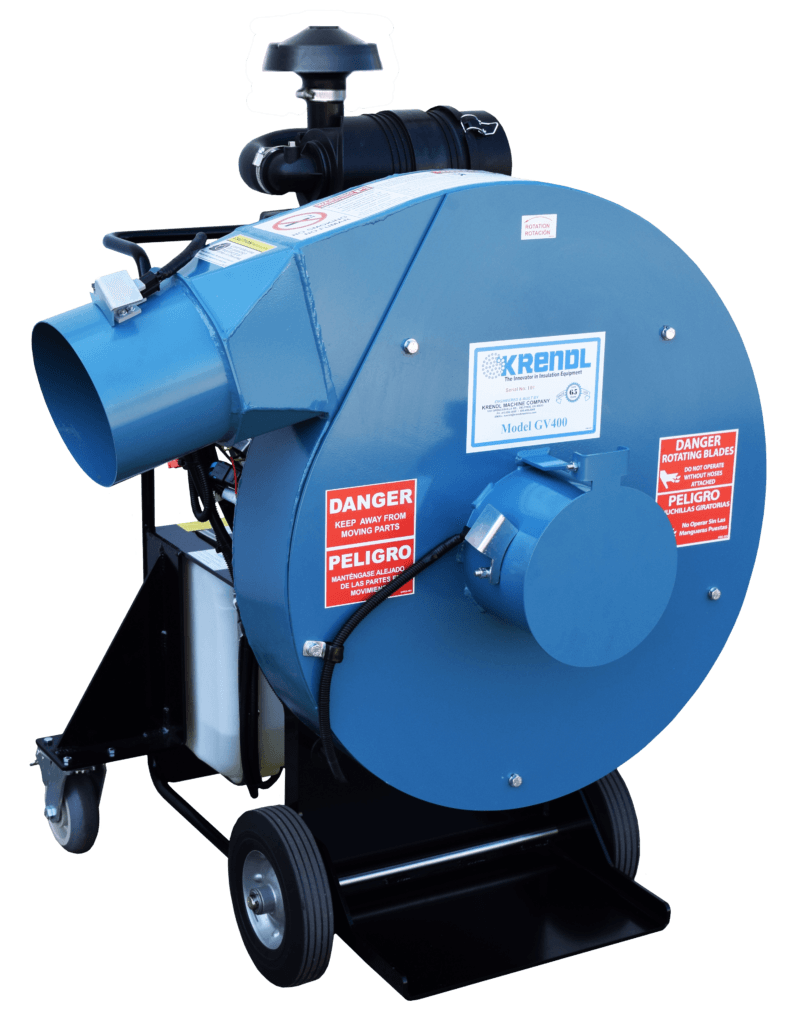

GV400 Gas Powered Vacuum
Theory of Operation:
This unit is designed to move all existing attic loose fill insulation, batt insulation and new insulation materials from the job site and deliver them directly to a designated area such as a filter bag, dumpster, etc. Utilizing the vacuum defender when removing loose fill material from an attic or other areas that have debris such as nails, wood chunks, etc, will help protect the vacuum from the potential damage and or excessive wear.
Weight/Dimensions
478-488 lbs (216-221kg)
45.5″L x 40.5″W x 50″H
Power Requirement
993cc 40Hp/3600rpm (no load) Briggs & Stratton
999cc 38hp/3600rpm (no load) Kohler
Fan Size/Type
24″ (60.9cm) Diameter steel fan with abrasion resistant steel blades
GV400 8" Batt Package
Part No. | Description | Qty. |
---|---|---|
GV400K8 | 38 HP Gas Vacuum | 1 |
H800 | 8" x 50' Hose | 4.3 |
4000-38 | 8" Hose Clamp | 9 |
382 | 8" Connector | 3 |
GV100-BAG | Vacuum Bag | 20 |
GV400 8' Package (Loosefill Package)
Part No. | Description | Qty. |
---|---|---|
GV400K8 | 38 HP Gas Vacuum | 1 |
GVDEFENDER-R1 | Vacuum Defender | 1 |
H800-B | 8" x 12.5' Hose | 1 |
H600 | 6" x 50' Hose | 4 |
341 | 6" Hose Clamp | 8 |
4000-38 | 8" Hose Clamp | 2 |
GV240-Kit | 8"-6" Reducer Kit | 1 |
VH550-5 | 6" Swivel Connector | 3 |
GV100-BAG | Vacuum Bag | 20 |
